R12 & R16 & R18/20

Straight Line Rip Saw Machine

press to zoom
press to zoom
1/3

+ DESCRIPTION

Superior Quality Maximum Dependability of Performance

  • Exclusively designed lubricator provides excellent lubrication performance.

  • Convenient link chain tracking adjustment.

  • Accurate link chain feed ensures superior straight accuracy.

  • Maximum stability of operation.

  • Precision saw arbor gives accurate and smooth cut.

+ SPECIFICATIONS

Straight Line Rip Saw Machine

All specifications, dimensions, and design characteristics shown in this catalog are subject to change without previous notice.

+ FLOW CHART

Straight Line Rip Saw Machine

01

Patented Saw Arbor Breake System (Patented)

Once the guard door is opened, the saw arbor will instantly brake in only 4 seconds.

Straight Line Rip Saw Machine

02

Exclusive Lubricator

(Patented)

The lubricator delivers oil to link chains. Specially designed lubricator allows lubricant flow synchronizing with chain feed speed to ensure superior lubrication effect.

Straight Line Rip Saw Machine

03

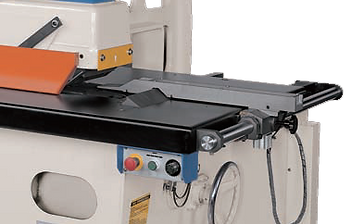

Accurate Fence

The cast iron fence moves on the tubular rail with positive lock. A graduated scale is provided on the rail for accurate reading of fence positioning.

Straight Line Rip Saw Machine

04

Comprehensive Safety Guards(Optional)

The machine is equipped with interior and side safety guards, providing complete safety protection for the operator during the operation process.

Straight Line Rip Saw Machine

05

Powered Elevation Of

Pressure Mechanism (Optional)

The pressure mechanism is raised or lowered by a power drive for maximum convenience of position adjustment.

Straight Line Rip Saw Machine

06

Anti-Kickback Finger

The infeed end of the machine is fitted with anti-kickback fingers providing maximum safety of guard for the operator.

Straight Line Rip Saw Machine

07

Laser Unit (Optional)

When requested, the laser unit can be fitted on this machine for accurately guiding the saw path.

+ FEATURES

Auto Fence

Auto Fence (optional)



Use: It can effectively enhance working efficiently and help lower the operator's physical strength.



Principles of Movement:

  • It is manufactured by aluminum alloy by working with linear bearing with linear bearing, and a 100g of push can make the fence move.

  • It restore to its original point automatically.

  • The fence is locked and de-locked automatically.

Link Chain Tracking



ADJUSTMENT-The link chain tracking adjustment can be done by simply turning the adjustment screws.

Link Chain Tracking
Link Chain Tracking
Sawblade Located Below Link

FIG. 1



Sawblade Located Below Link

Chain-As shown on this configuration, the cutting force against the wood acts downward, therefore it provides minimum possibility of chips kickback.

Configuration of Conventional Rip Saw Sawblade Located Above Link

FIG. 2



Configuration of Conventional Rip Saw

Sawblade Located Above Link

Chain-The cutting force against the wood acts forward and less pressure rollers, so it's possible the chips will kick back.
