G-20

Bandsaw Blade Sharpener

g20-6-2
g20-6-2
g20-4-2
g20-4-2
1/1

+ DESCRIPTION

A Peripheral Equipment for Frame Saw​

Designed to Maximize Blade Service Life While Minimizing Blade Consumption.

  • The wet grinding feature assures extremely fine finish on teeth surfaces and greatly extends cutting period of saw blade.

  • Grinding amount adjustment is accurately indicated by dial gauges.

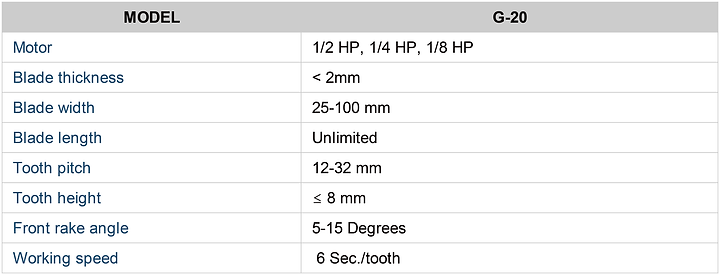

+ SPECIFICATIONS

Bandsaw Blade Sharpener
Bandsaw Blade Sharpener

All specifications, dimensions, and design characteristics shown in this catalog are subject to change without previous notice.

+ FEATURES

Bandsaw Blade Sharpener

01

High precision blade feed mechanism ensures accurate fine grinding and reduces grinding loss to a minimum.

Bandsaw Blade Sharpener

02

Front Tack Angle Adjustment On Same Axis (Patented)

Easy to adjust the front rake angle without affecting teeth profile and other adjustments.

Bandsaw Blade Sharpener

03

Big Range Adjustment for Blade Sizes

Range of blade width: 25mm~100mm.Range of tooth pitch: 12mm~32mm.

Bandsaw Blade Sharpener

04

Precision Spindle

The spindle runs in high speed a precision bearing, which assures teeth accuracy and increased blade life.

Bandsaw Blade Sharpener

05

Teeth Number Setting

Grinding teeth setting is fast and it’s made by the external mounted setting device.

Bandsaw Blade Sharpener

06

Convenient, Fast Blade Clamping Mechanism

The performance of the blade clamping mechanism may affect feed accuracy and finish of grinding surface.
